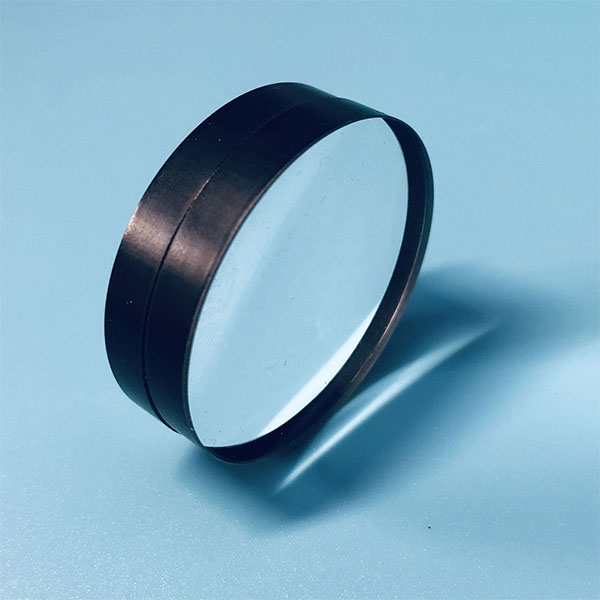

N-BAF10 / N-SF57 Achromatic Lenses

N-BAF10(H-ZBaF52) nd:1.670030 vd:47.20 ρ(g/cm³):3.57 N-SF57(H-ZF52) nd:1.846660 vd:23.78 ρ(g/cm³):3.51
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Inquiry Now
Relative Partial Dispersions
N-BAF10(H-ZBaF52)
N-SF57(H-ZF52)
Ps,t 0.2488 P's,t 0.2460 Ps,t 0.2039 P's,t 0.2003
PC,s
0.5085 P'C',s
0.5494 PC,s
0.4568 P'C',s
0.4922
Pd,C 0.2985 P'd,C' 0.2486 Pd,C
0.2855 P'd,C'
0.2370
Pe,d 0.2378 P'e,d
0.2351 Pe,d
0.2353 P'e,d
0.2312
Pg,F 0.5633 P'g,F'
0.4993 Pg,F
0.6207 P'g,F'
0.5485
Pi,h 0.8360 P'i,h
0.8266




Abnormal  Dispersions
N-BAF10(H-ZBaF52) N-SF57(H-ZF52)
△PC,t -0.0114 △PC,s -0.0048 △PC,t 0.0023 △PC,s -0.0012
△PF,e -0.0002 △Pg,F -0.0020 △PF,e 0.0026 △Pg,F 0.0155

What is the application of
Achromatic Lenses?
1. Projectors: in projection display technology, achromatic lenses are used in the optical system of projectors. These lenses ensure colour accuracy and clarity of the projected image, enhancing the visual experience of the viewer.
2. Spectral analysis: achromatic lenses are used in spectral analysis instruments in scientific research and industrial testing. These lenses ensure spectral accuracy and resolution and help researchers to analyse the composition and properties of substances.
3. Medical imaging: in medical imaging equipment, such as endoscopes and ophthalmic examination equipment, achromatic lenses are used to capture high-definition images of the inside of the human body. These lenses provide clear and no chromatic aberration images to help doctors with diagnosis and treatment.
4. Virtual Reality and Augmented Reality: achromatic lenses are used in optical display systems in virtual reality (VR) and augmented reality (AR) devices. These lenses ensure clarity and colour accuracy of virtual images, enhancing the immersive user experience.

What's the difference between two-piece achromatic lenses and three-piece achromatic lenses?
Two-piece achromatic lenses: Simple structure and low cost, but limited correction of higher order colour differences.
Three-piece achromatic lenses: Better colour and aberration correction, but  complex structure, high cost.
