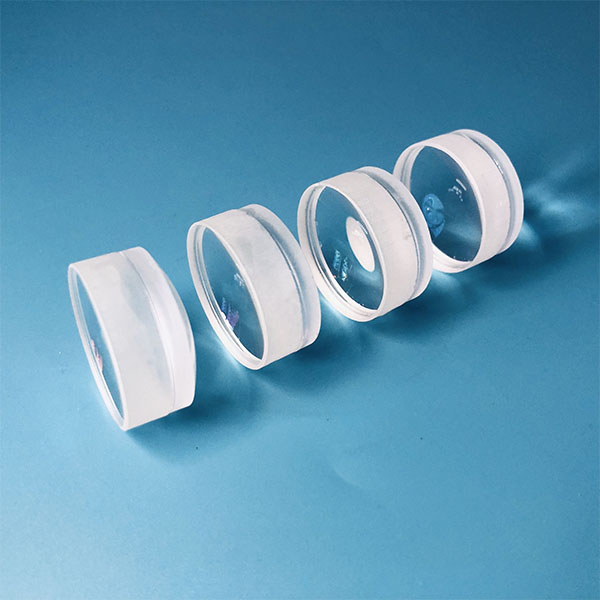

N-BAF10 / N-SF10 Achromatic Lenses

N-BAF10(H-ZBaF52) nd:1.670030 vd:47.20 ρ(g/cm³):3.57 N-SF10(H-ZF4A) nd:1.728250 vd:28.32 ρ(g/cm³):3.05
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Inquiry Now
Relative Partial Dispersions
N-BAF10(H-ZBaF52)
N-SF10(H-ZF4A)
Ps,t 0.2488 P's,t 0.2460 Ps,t 0.2153 P's,t 0.2118
PC,s
0.5085 P'C',s
0.5494 PC,s
0.4696 P'C',s
0.5062
Pd,C 0.2985 P'd,C' 0.2486 Pd,C
0.2886 P'd,C'
0.2397
Pe,d 0.2378 P'e,d
0.2351 Pe,d
0.2359 P'e,d
0.2321
Pg,F 0.5633 P'g,F'
0.4993 Pg,F
0.6081 P'g,F'
0.5378
Pi,h 0.8360 P'i,h
0.8266 Pi,h
1.0453 P'i,h
1.0283

Abnormal  Dispersions
N-BAF10(H-ZBaF52) N-SF10(H-ZF4A)
△PC,t -0.0114 △PC,s -0.0048 △PC,t 0.0052 △PC,s 0.0009
△PF,e -0.0002 △Pg,F -0.0020 △PF,e 0.0014 △Pg,F 0.0107

What is the application of
Achromatic Lenses?
1. Projectors: in projection display technology, achromatic lenses are used in the optical system of projectors. These lenses ensure colour accuracy and clarity of the projected image, enhancing the visual experience of the viewer.
2. Spectral analysis: achromatic lenses are used in spectral analysis instruments in scientific research and industrial testing. These lenses ensure spectral accuracy and resolution and help researchers to analyse the composition and properties of substances.
3. Medical imaging: in medical imaging equipment, such as endoscopes and ophthalmic examination equipment, achromatic lenses are used to capture high-definition images of the inside of the human body. These lenses provide clear and no chromatic aberration images to help doctors with diagnosis and treatment.
4. Virtual Reality and Augmented Reality: achromatic lenses are used in optical display systems in virtual reality (VR) and augmented reality (AR) devices. These lenses ensure clarity and colour accuracy of virtual images, enhancing the immersive user experience.

Can Yutai Optics design achromatic lenses for customers?
Yes, Yutai Optics has engineers who can design technical drawings of achromatic lenses, if customers provide diameter( or C.A.), FL and wavelength.
